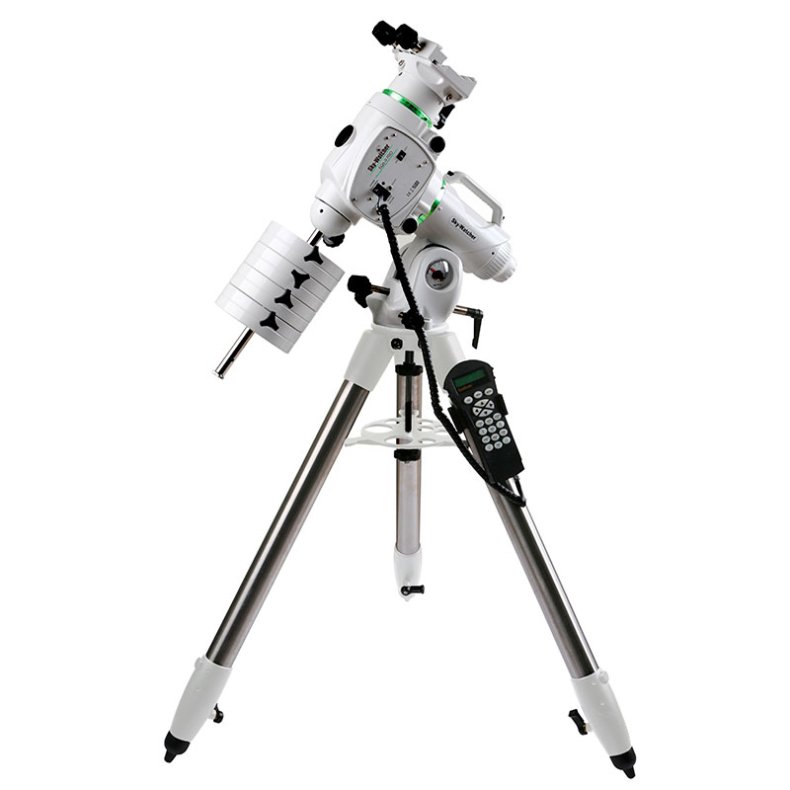

Sky-Watcher EQ6R PRO Synscan

Sky-Watcher EQ6R PRO Synscan
Den nye EQ6-R PRO Synscan™ Computerised Go-To mounting er en videreudvikling af EQ6 PRO.

Det moderne optimerede design af monteringen som f.eks.

• Op til 20 kg kapacitet til Astro-fotografering.
• Synchronous Belt Driven, resulting in minimal backlash - Even quieter, smoother operation and better results when guiding. Higher Torque.
• Superior Latitude adjustment controls with greater range of latitudes possible
• Built-in SNAP camera control port
• PPEC worm gear and worm periodic error correction function (avoids having to constantly re-train)
• Indbygget håndtag til transport.

Computer styring

• Database: Total 42,900+ Objekter, inkl. komplette M, NGC, IC & SAO kataloger
• Alignment Metode: Polar Alignment Scope
• Pointing Accuracy Enhancement (PAE) feature
• Unknown Object Indentification feature
• Pointing Accuracy: Op til 5 arc-minutes (RMS)
• Tracking Rates: Sidereal rate, solar rate, lunar rate
• Slew Speed
• Auto-guiding Speed: 0.125X, 0.25X, 0.5X, 0.75X, 1X
• Motor: 1.8 º Hybrid Stepper Motors
• Opløsning: 9216000 Counts/Rev., approx. 0.14 arc-second
• Kompatibel med næsten alle standard planetarieprogrammer
• SynScan firmware kan opgraderes via Internettet
• Strøm: 12V DC (strømforsyning medfølger ikke)

Fysiske data

• Monterings-.skinne: Dual-Fit 45mm/75mm Dovetail Saddle
• Hoved: Vægt: 17.3 kg
• Stativ: Vægt: 7,5kg
• Kontravægte: 2 x 5 kg
• Vægt ialt: 34,8 kg

Tekniske data

• Product Name:  EQ6-R PRO Synscan™
• Mount Type:  German Equatorial
• Maximum Payload (Counterweights excluded):  20kg (for Astro-Photography)
• Latitude Adjustment Range:  5º to 65º
• Azimuth Adjustment Range:  About ±9 º
• Mount Weight (Tripod excluded): 17.3 kg
• Counterweights Supplied:  2 x 5kg
• Tripod Supplied:    2-inch stainless steel, 7.5kg Weight
• Counterweight Rod:  18mm Diameter, Length 240mm + 180mm
• Power Requirement:  DC11~16V 4A
• Motors: 1.8 º Hybrid Stepper Motors
• Transmission:  180:1 Worm Drive + 48:12 Timing Belt Drive + 64 Micro-step/1.8º Stepper Motor Drive
• Gear Ratio:  720
• Resolution:  9216000 Counts/Rev., approx. 0.14 arc-second
• Maximum Slewing Speed:  4.2 degrees/second
• Tracking Rate:  Sidereal rate, solar rate, lunar rate
• Tracking Mode:  Equatorial mode
• Auto-guiding Speed:  0.125X, 0.25X, 0.5X, 0.75X, 1X
• PEC: 100 Segments Permanent PEC (PPEC)
• Hand Controller: SynScan™
• Database:  42000+ Objects
• Celestial Object Catalogue:  Messier, NGC, IC, SAO, Caldwell, Double Star, Vari-able Star, Named Star, Planets
• Pointing Accuracy:  Up to 5 arc-minutes (RMS)
• Integral SNAP camera control port
• Dual-Fit 45mm/75mm Dovetail Saddle
• Polar Alignment Scope
